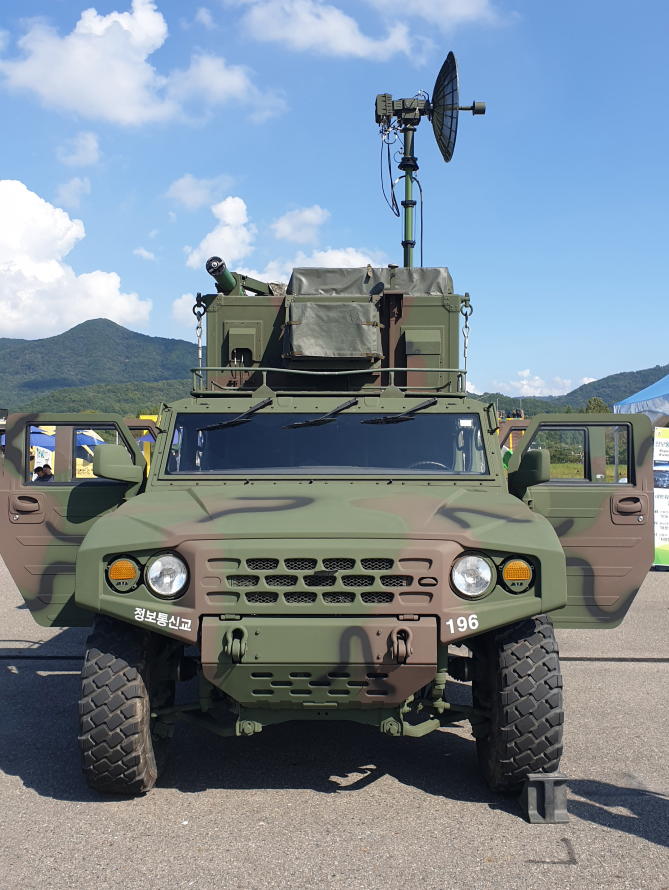

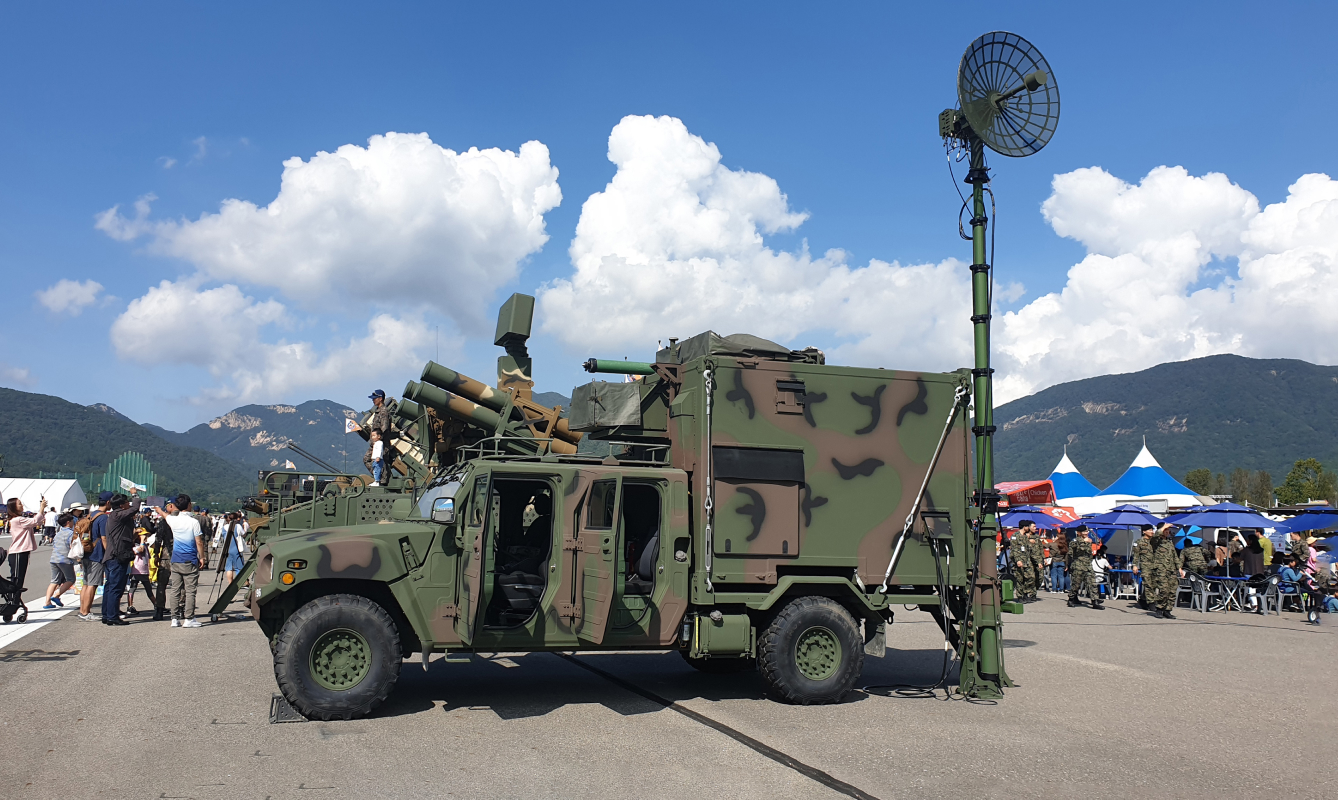

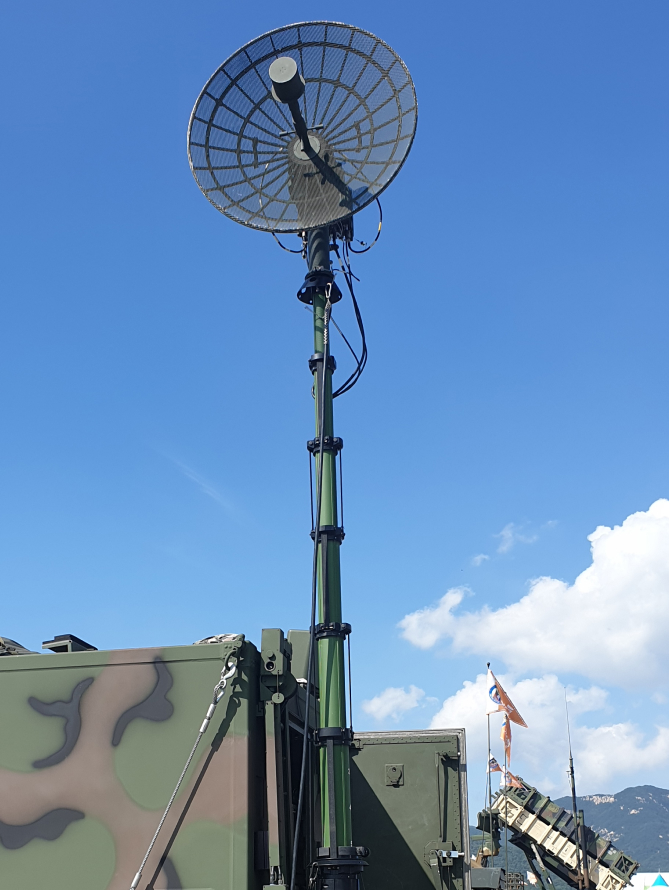

The Lightweight Telescopic KF MAST is a mechanical winch and belt-mounted MAST made from dual-molded carbon and glass fibers. It can be deployed by 1 to 3 people and is operated by a manual crank winch with the option to upgrade to a mechanical crank winch if necessary. Additionally, it offers 360-degree rotation, facilitating tactical maneuvering. The standard design is customizable according to customer specifications and requests, with the option for different colors based on customer preferences. The KF MAST can be supplemented with various mounting kits for tactical vehicle maneuvers and ground operations. Sand plate kits and hard ground kits are also available.
Height | Operating height | 10 ~ 15 m |
Contraction height | 2.5 ~ 3.9 m | |
Mast sections | 5 ~ 7 sections | |
1st stage diameter | 131 ~ 156 mm | |
Weight | Mast | 35 ~ 48kg |
Accessories | 40 ~ 45kg | |
Payload | 60kg / 100kg | |
Material | CFRP + GRP | |
Application | For vehicle and ground use |
